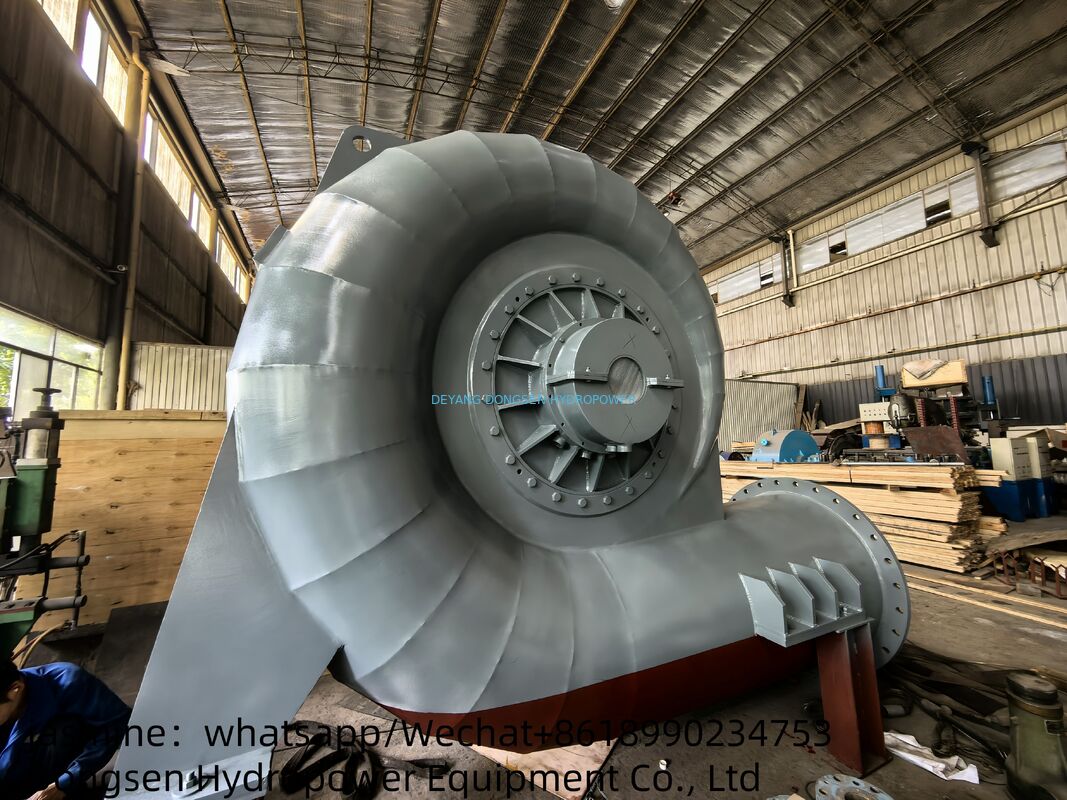

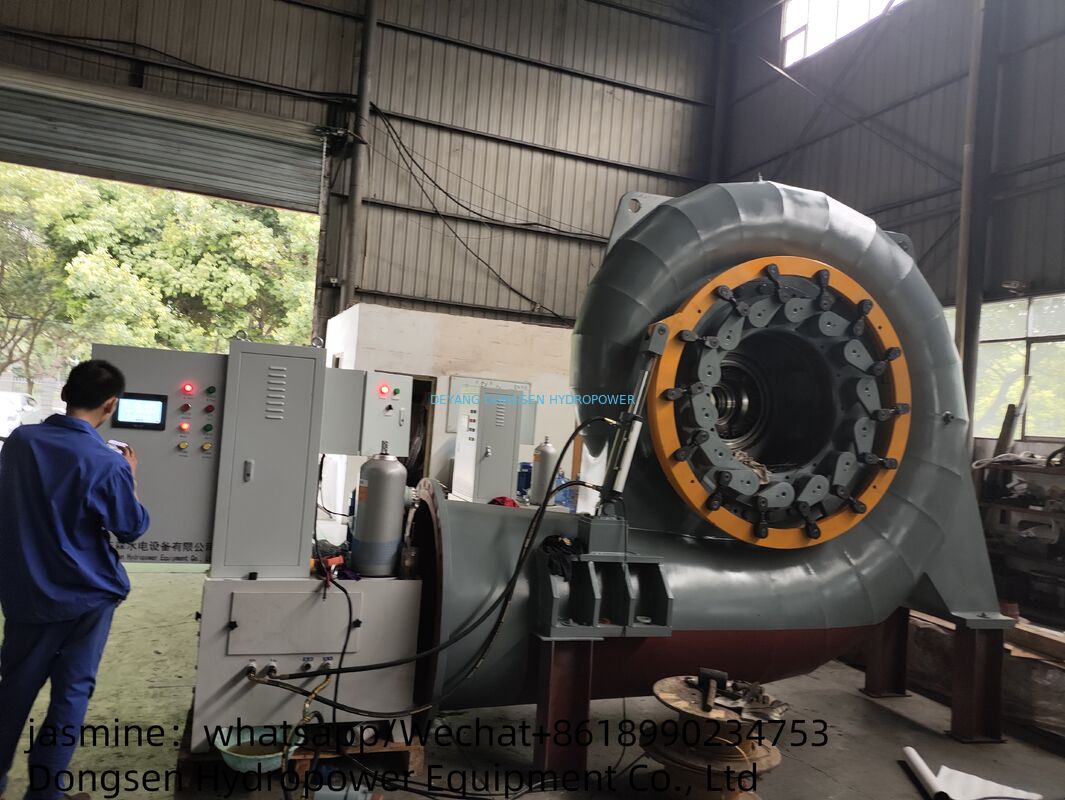

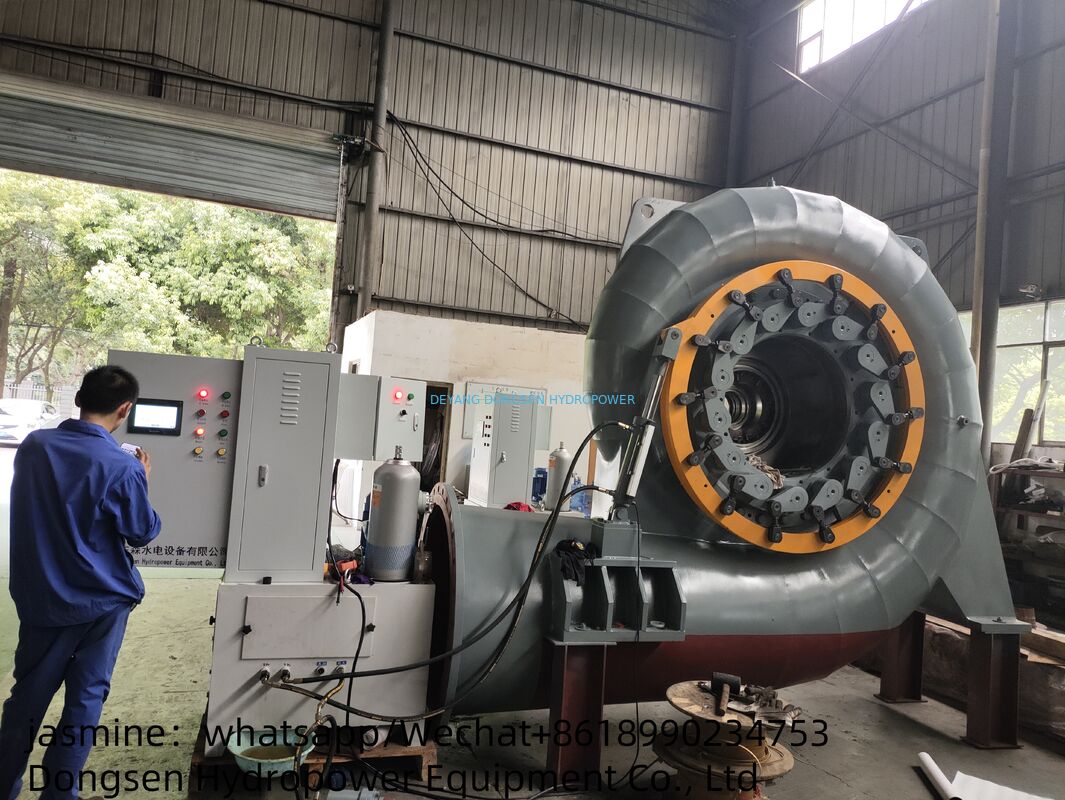

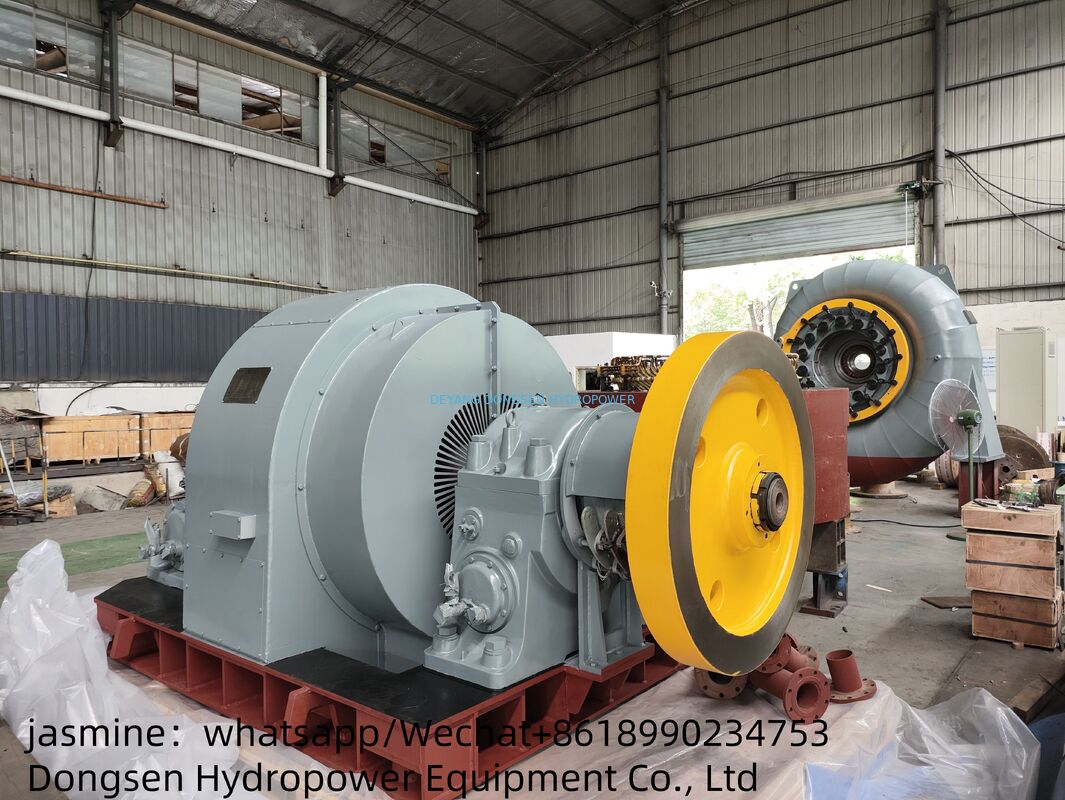

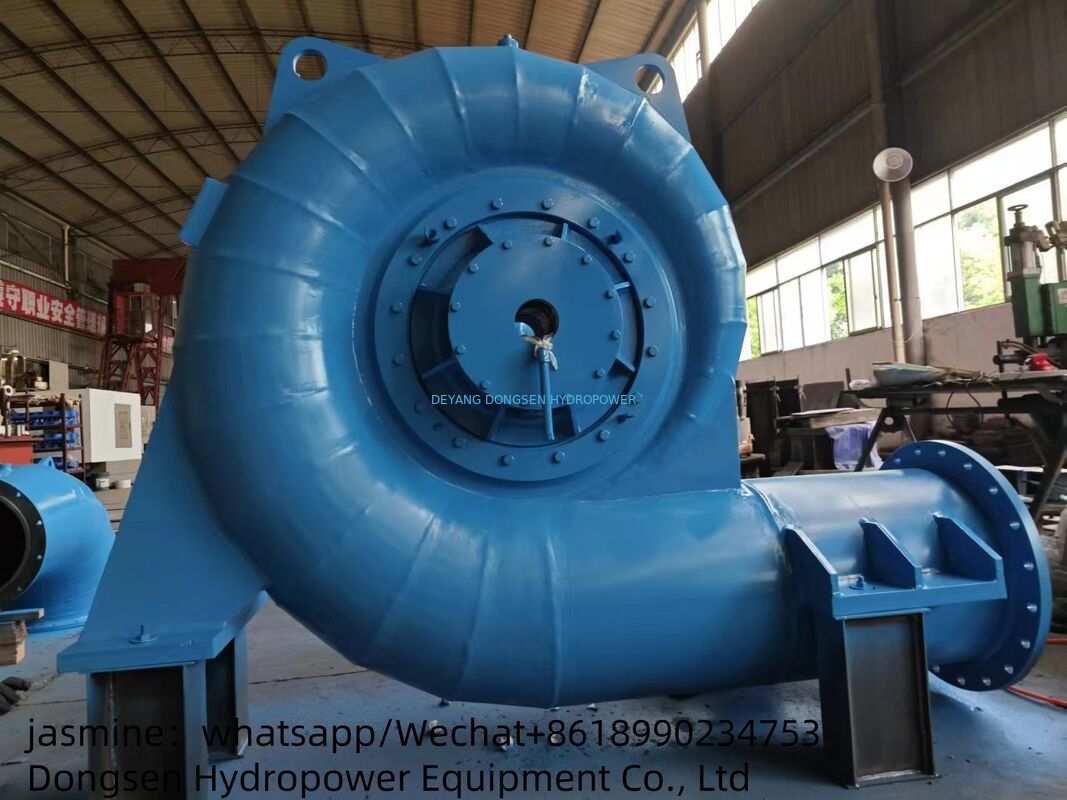

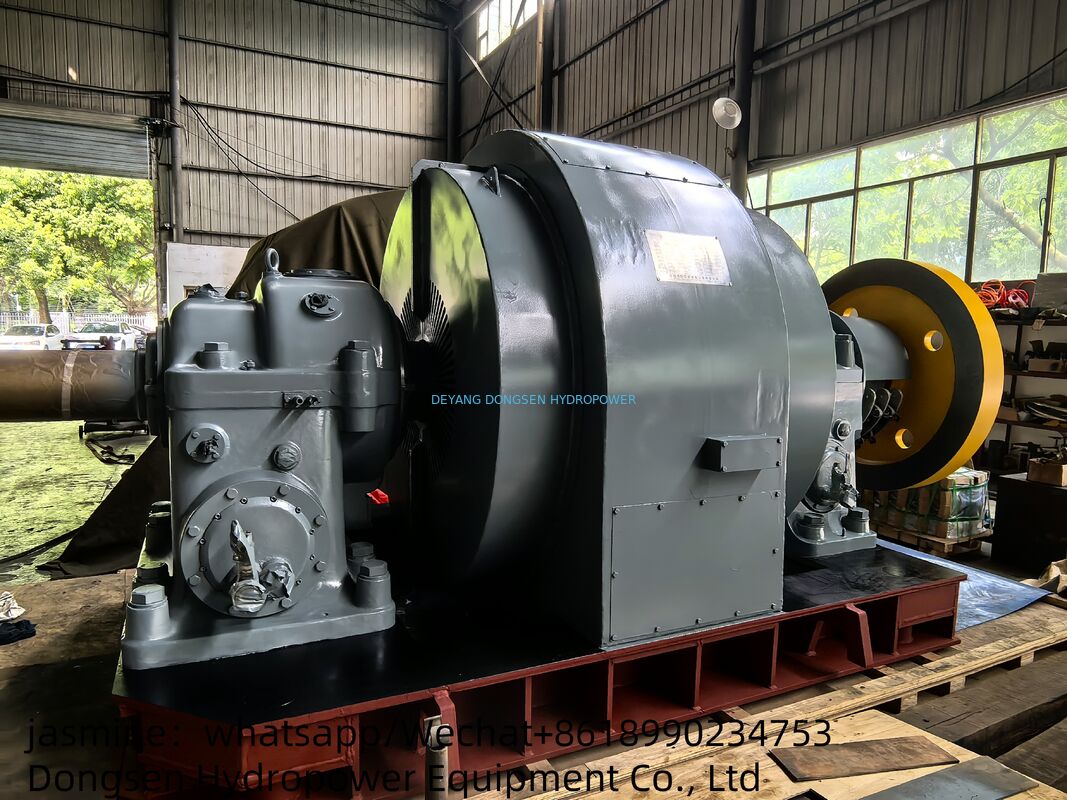

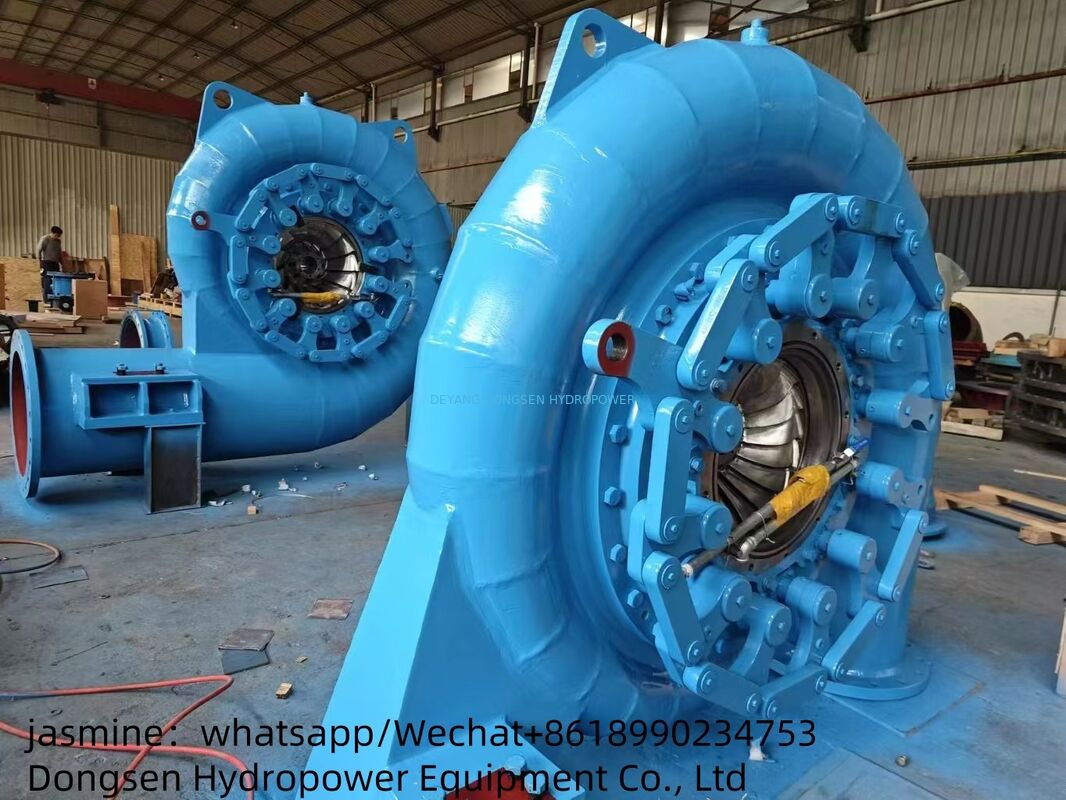

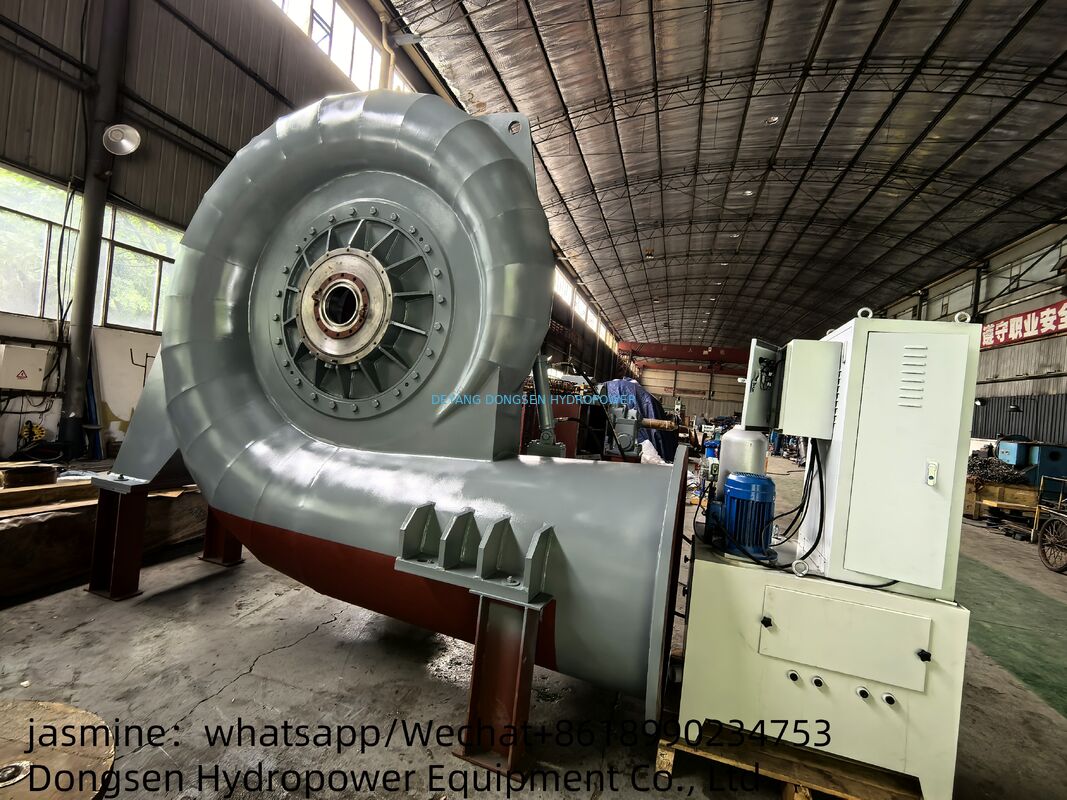

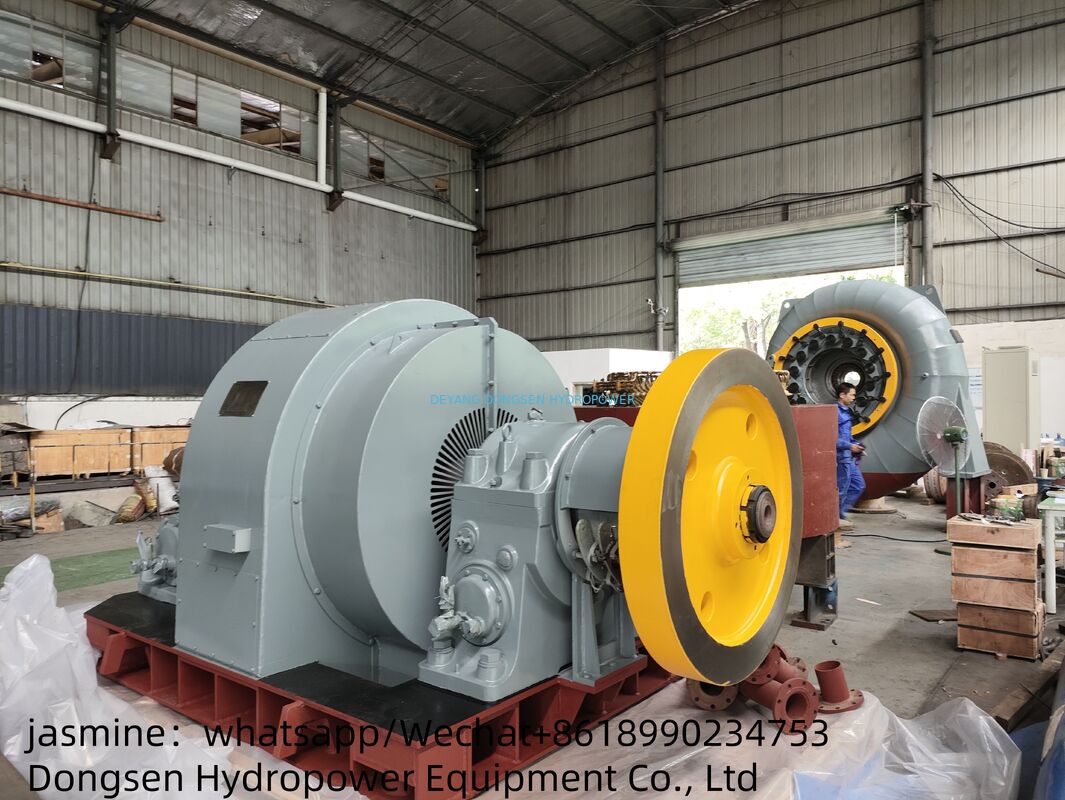

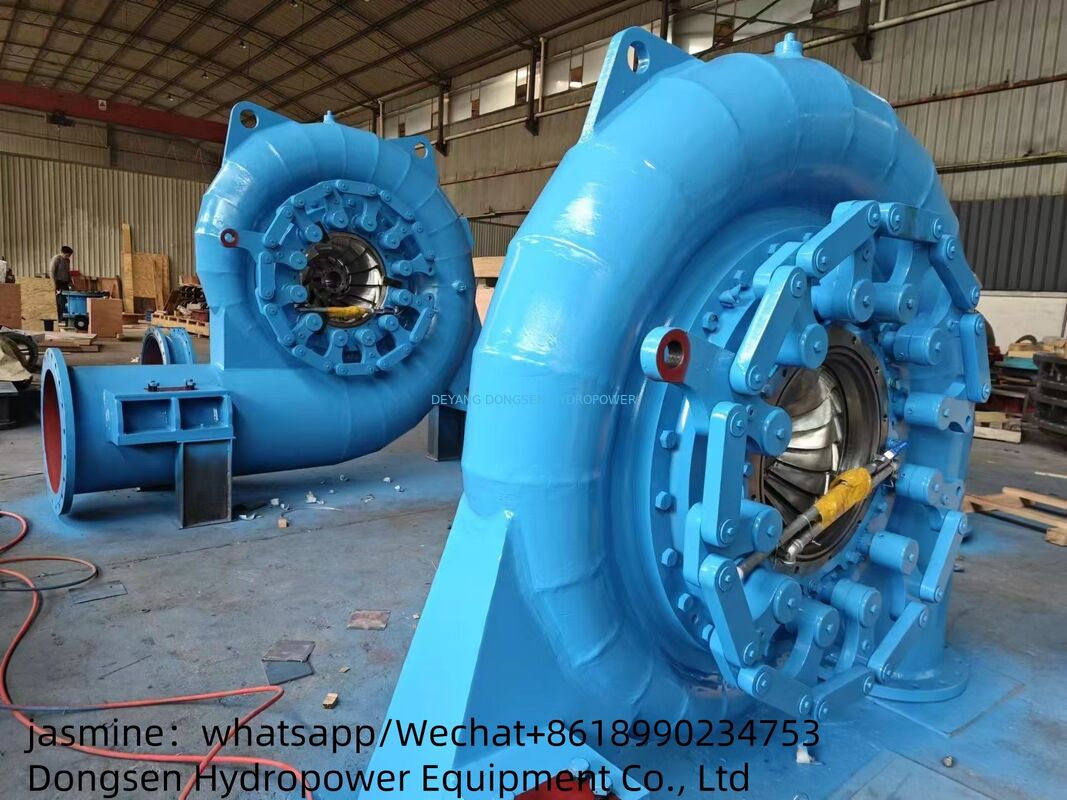

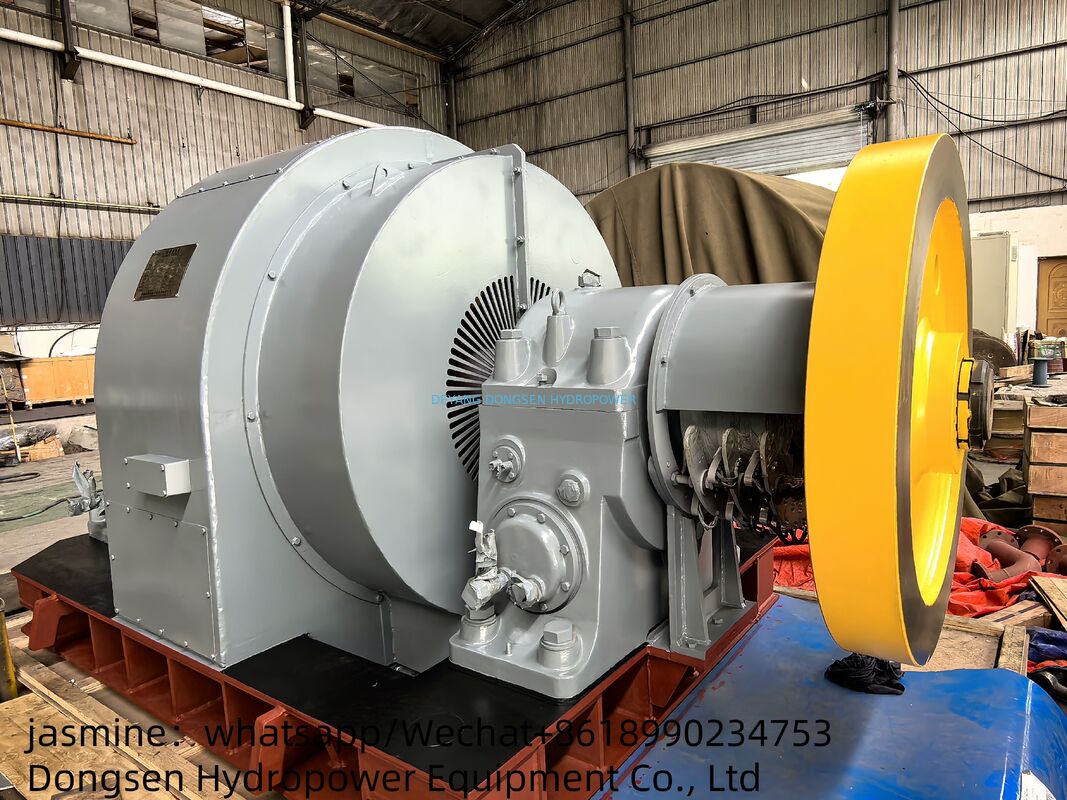

HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation

HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation

3.2MW Francis hydro turbine

Class F insulated hydro generator

high efficiency Francis turbine

Tempat asal:

Sichuan, Tiongkok

Nama merek:

DSSD

Sertifikasi:

ISO9001, TUV, BV

Nomor model:

HL220-LJ-134

Hubungi kami

Permintaan Penawaran
HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation
Rincian Produk
Model Turbin:
HL220-LJ-134 (dapat disesuaikan)
Jenis turbin:
Francis (aliran campuran), poros vertikal
Nilai Daya:
3200kW
Dinilai kepala:
60 m (dapat disesuaikan)
Aliran terukur:
6,0 m3/detik
Kecepatan Terukur:
375 rpm
Diameter Pelari:
134 cm
Bahan pelari:
Baja tahan karat ZG0Cr13Ni4Mo
Model Pembangkit:
SF3200-16/2600
Tegangan Generator:
400 V / 6300 V / 10500 V
Frekuensi:
50 Hz / 60 Hz
Kelas Isolasi:
Kelas F (F/F)
Sistem Eksitasi:
Eksitasi tanpa sikat/statis
Pengaturan kecepatan:
Gubernur Kecepatan Mikrokomputer
Umur Desain:
30-50 tahun
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
1 set
Harga
USD 500,000 - 1,500,000 / Set
Kemasan rincian
Ekspor rangka baja layak laut dan kemasan kotak kayu dengan perlindungan tahan lembab
Waktu pengiriman
150-210 hari setelah konfirmasi kontrak
Syarat-syarat pembayaran
T/T, L/C
Menyediakan kemampuan
4 Set per Tahun
Produk-produk terkait
Harga yang pantas Horizontal Francis Turbine Generator 500kW 1000rpm Two Bearing Layout Compact Design online

Horizontal Francis Turbine Generator 500kW 1000rpm Two Bearing Layout Compact Design

Dapatkan Harga Terbaik
Harga yang pantas Francis Turbine Generator Unit 2MW 6300V 50Hz Synchronous Alternator Brushless Excitation online

Francis Turbine Generator Unit 2MW 6300V 50Hz Synchronous Alternator Brushless Excitation

Dapatkan Harga Terbaik
Harga yang pantas HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation online

HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation

Dapatkan Harga Terbaik
Harga yang pantas HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation online

HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation

Dapatkan Harga Terbaik
Hubungi kami
008618990234753
hydropower5566@gmail.com
86-0838-2443007
Hubungi sekarang
Deskripsi Produk
Product Overview The HL220-LJ-134 3.2MW Francis hydro turbine generator unit is a complete vertical-shaft mixed-flow generating set developed for small and medium-head hydropower stations. It integrates a stainless-steel Francis runner, a synchronous generator, a microcomputer speed governor, an excitation system and a protection and control system into one reliable package. Every unit is custom-engineered and manufactured in China according to the actual head, flow, grid and
