Rumah > Products > Generator Turbin Francis >

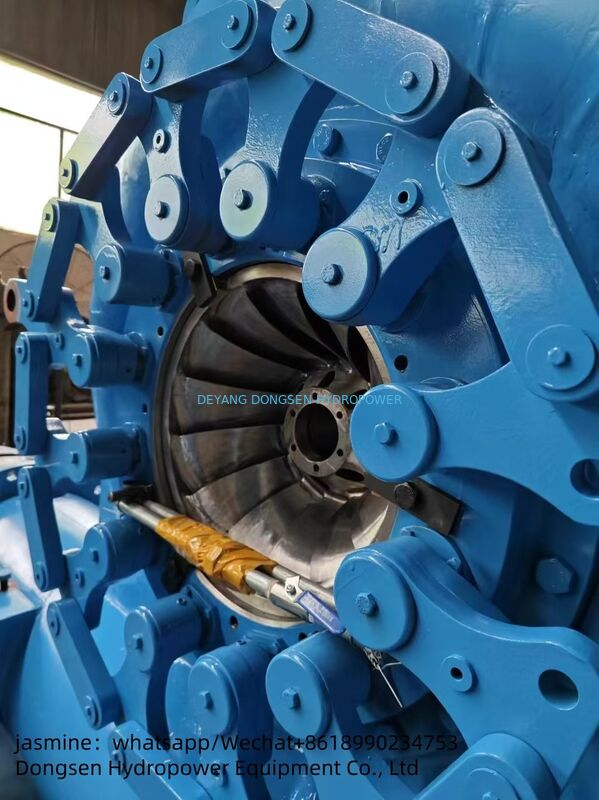

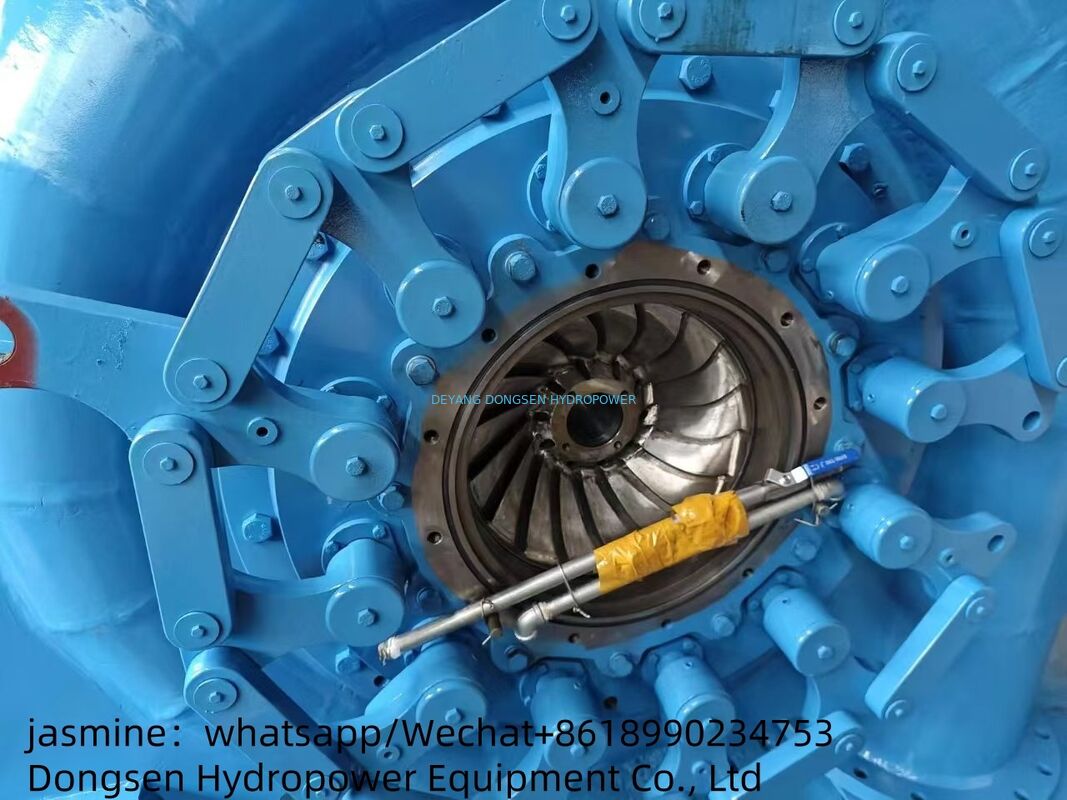

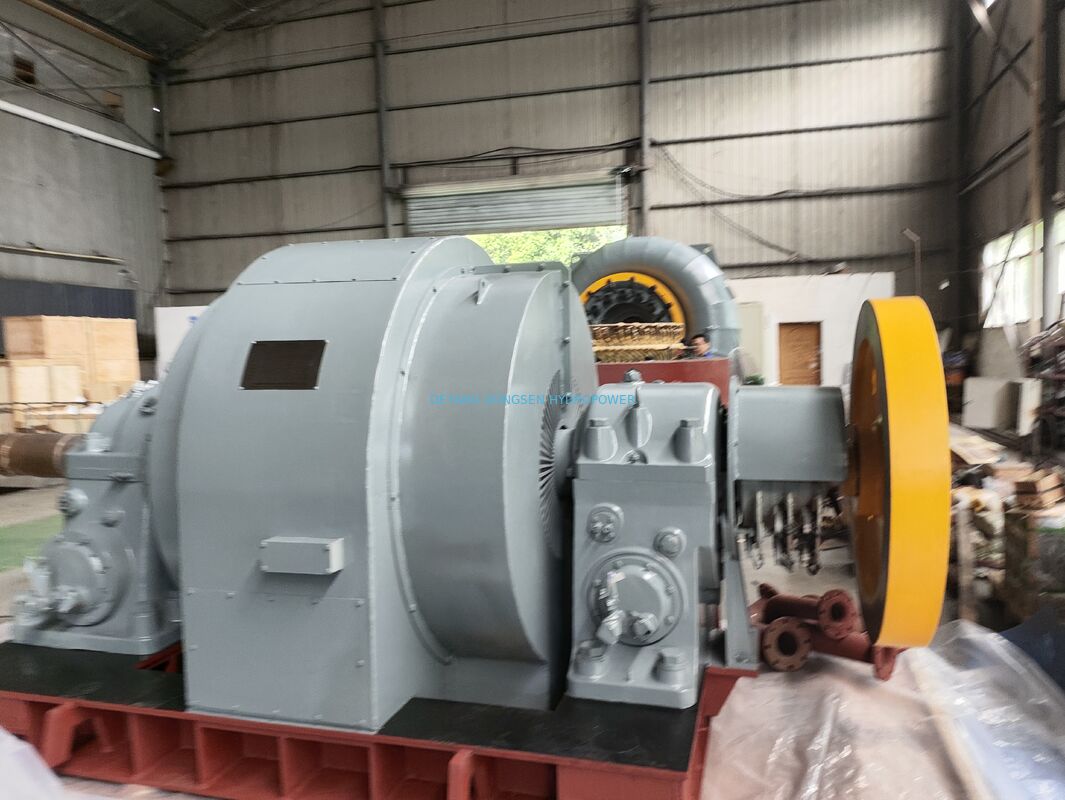

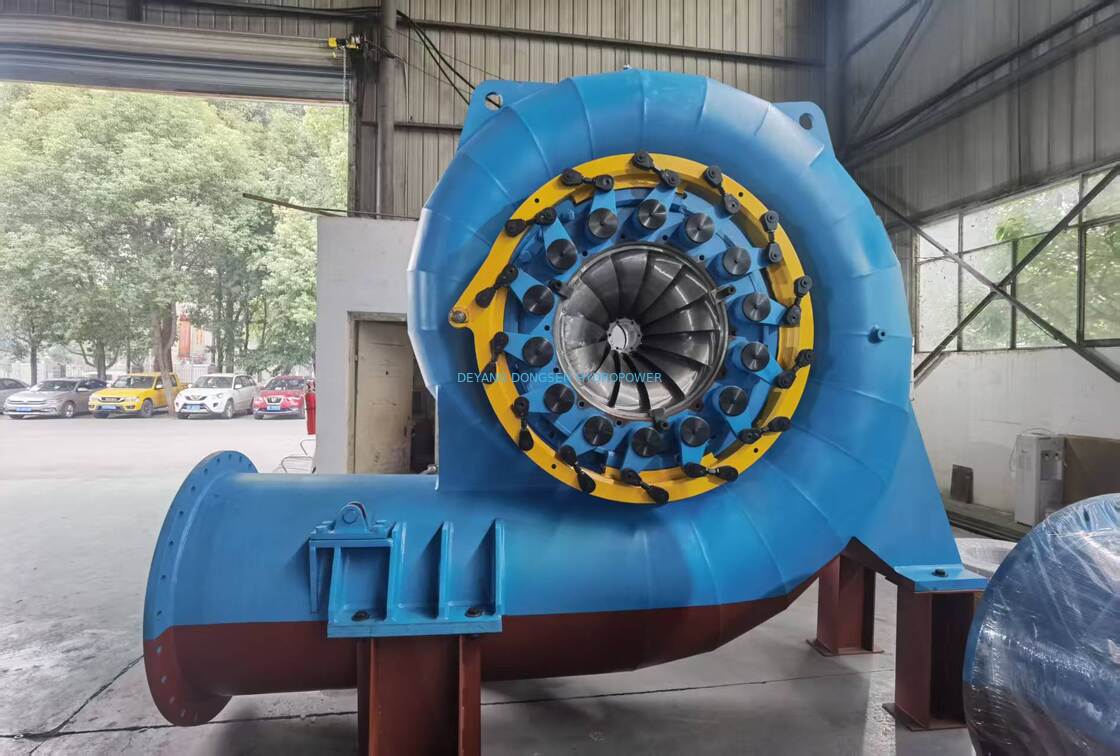

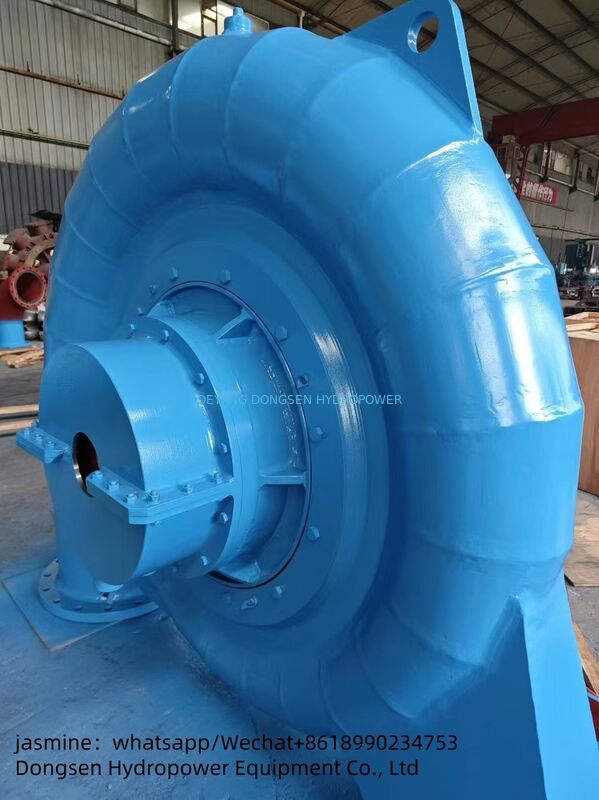

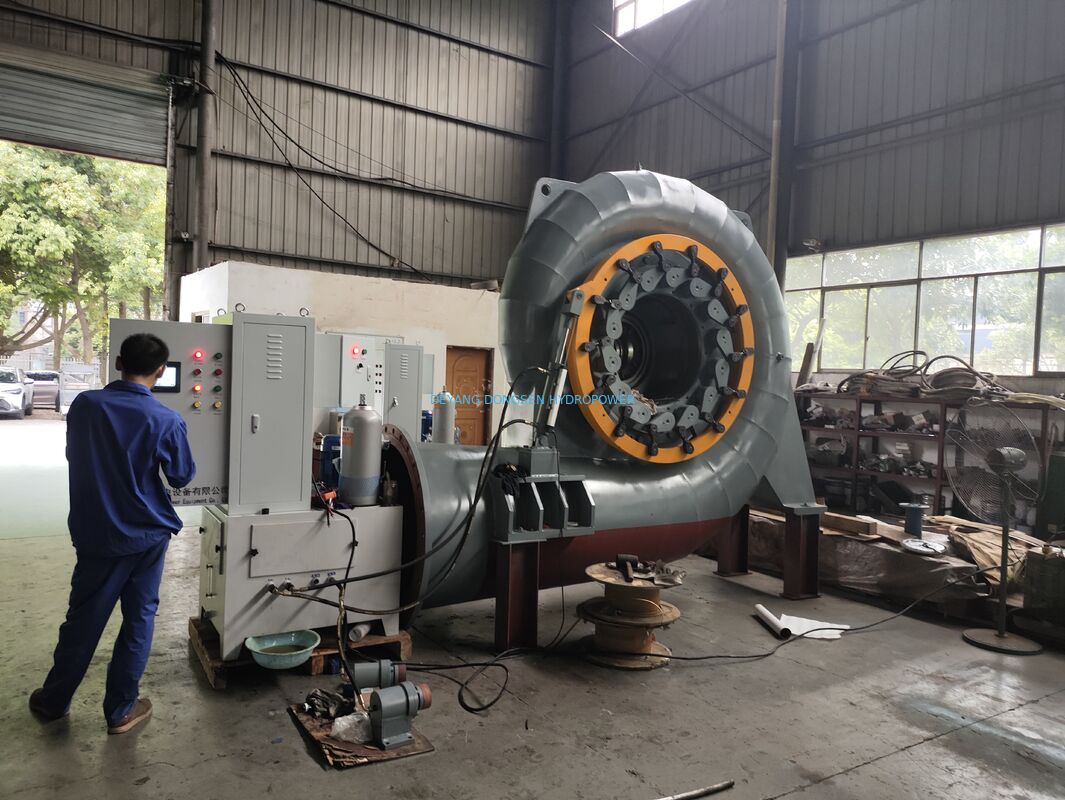

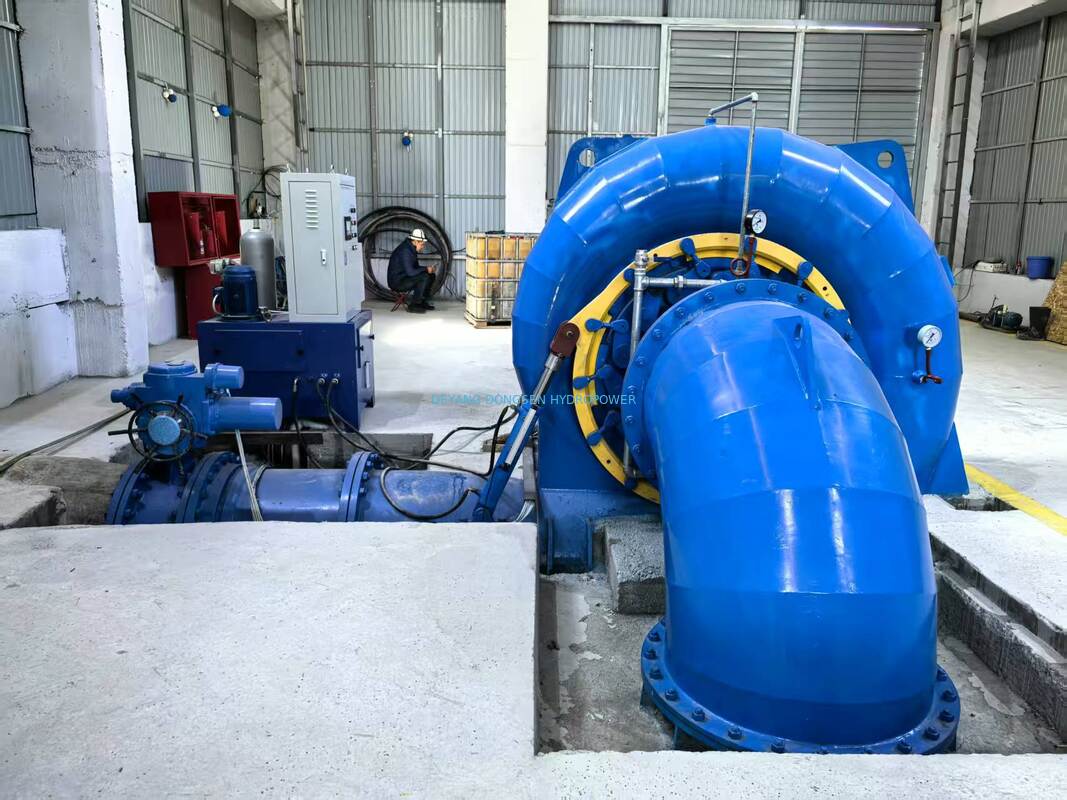

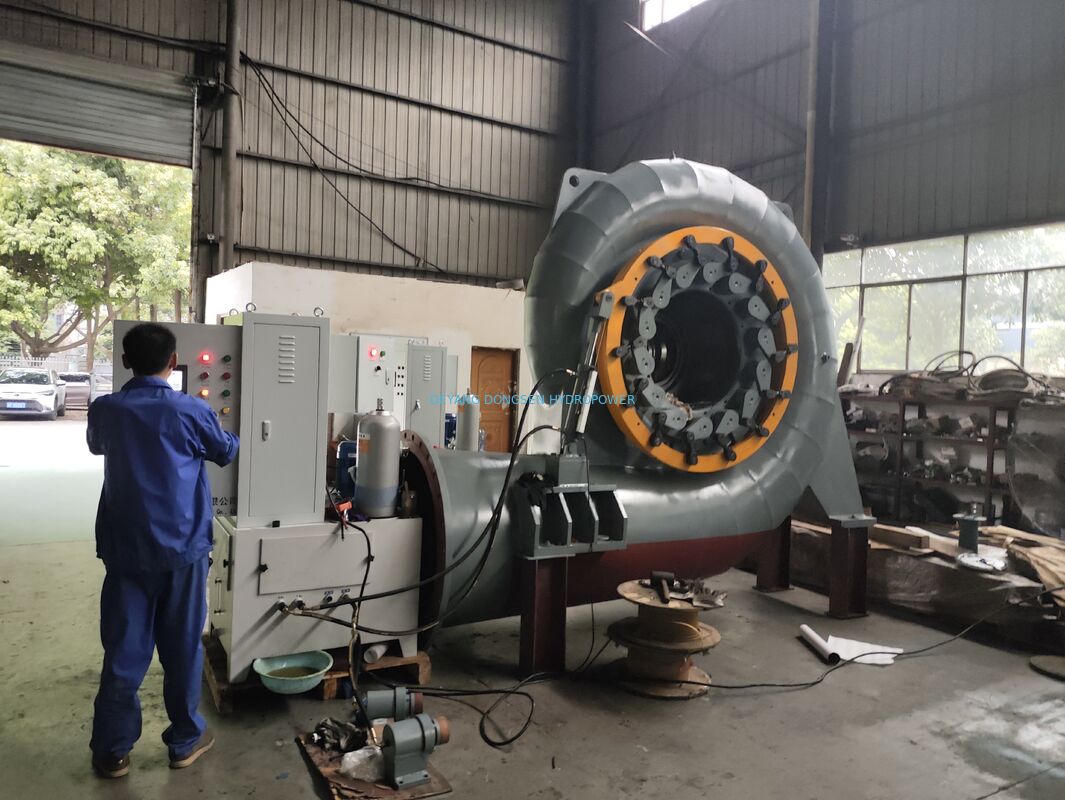

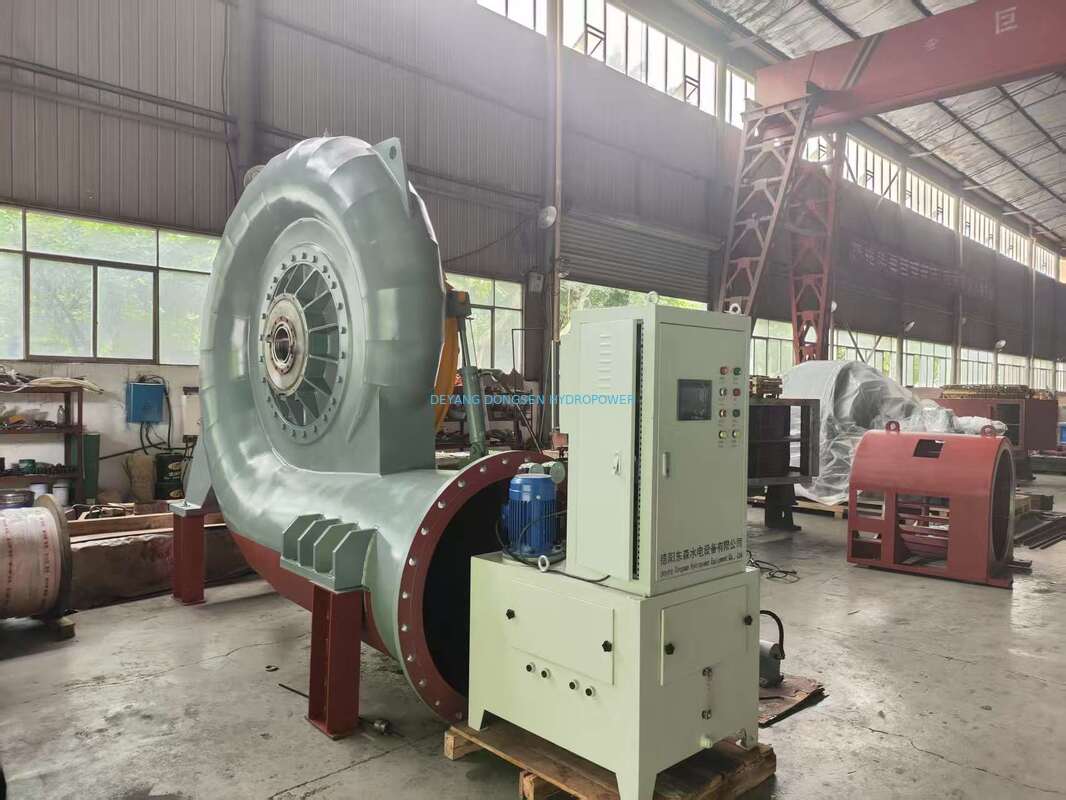

HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation

HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation

500kW Francis turbine generator

Horizontal Francis turbine Class F

Stable output Francis turbine unit

Tempat asal:

Sichuan, Tiongkok

Nama merek:

DSSD

Sertifikasi:

ISO9001, TUV, BV

Nomor model:

HL110-WJ-42

Hubungi kami

Permintaan Penawaran
HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation
Rincian Produk
Model Turbin:
HL110-WJ-42 (dapat disesuaikan)
Jenis turbin:
Francis (aliran campuran), poros horizontal
Nilai Daya:
500KW
Dinilai kepala:
35 m (dapat disesuaikan)
Aliran terukur:
1,6 m3/detik
Kecepatan Terukur:
1000 RPM
Diameter Pelari:
42 cm
Bahan pelari:
Baja tahan karat ZG0Cr13Ni4Mo
Model Pembangkit:
SFW500-6/990
Tegangan Generator:
400V
Frekuensi:
50 Hz / 60 Hz
Kelas Isolasi:
Kelas F (F/F)
Sistem Eksitasi:
Eksitasi tanpa sikat/statis
Pengaturan kecepatan:
Gubernur Kecepatan Mikrokomputer
Umur Desain:
30-50 tahun
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
1 set
Harga
USD 80,000 - 200,000 / Set
Kemasan rincian
Ekspor rangka baja layak laut dan kemasan kotak kayu dengan perlindungan tahan lembab
Waktu pengiriman
90-150 hari setelah konfirmasi kontrak
Syarat-syarat pembayaran
T/T, L/C
Menyediakan kemampuan
10 set per tahun
Produk-produk terkait
Harga yang pantas Horizontal Francis Turbine Generator 500kW 1000rpm Two Bearing Layout Compact Design online

Horizontal Francis Turbine Generator 500kW 1000rpm Two Bearing Layout Compact Design

Dapatkan Harga Terbaik
Harga yang pantas Francis Turbine Generator Unit 2MW 6300V 50Hz Synchronous Alternator Brushless Excitation online

Francis Turbine Generator Unit 2MW 6300V 50Hz Synchronous Alternator Brushless Excitation

Dapatkan Harga Terbaik
Harga yang pantas HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation online

HL110-WJ-42 500kW Horizontal Francis Water Turbine Generator Unit Stable Output Class F Insulation

Dapatkan Harga Terbaik
Harga yang pantas HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation online

HL220-LJ-134 3.2MW Francis Hydro Turbine Generator Unit High Efficiency Class F Insulation

Dapatkan Harga Terbaik
Hubungi kami
008618990234753
hydropower5566@gmail.com
86-0838-2443007
Hubungi sekarang
Deskripsi Produk
Product Overview The HL110-WJ-42 500kW horizontal Francis water turbine generator set is a compact mixed-flow generating unit specially designed for small hydropower stations, mountainous areas and distributed power projects. Combining a stainless-steel Francis runner, a horizontal synchronous generator, a microcomputer speed governor and a complete control system on a common base frame, the set offers easy installation, simple maintenance and dependable long-term service.
